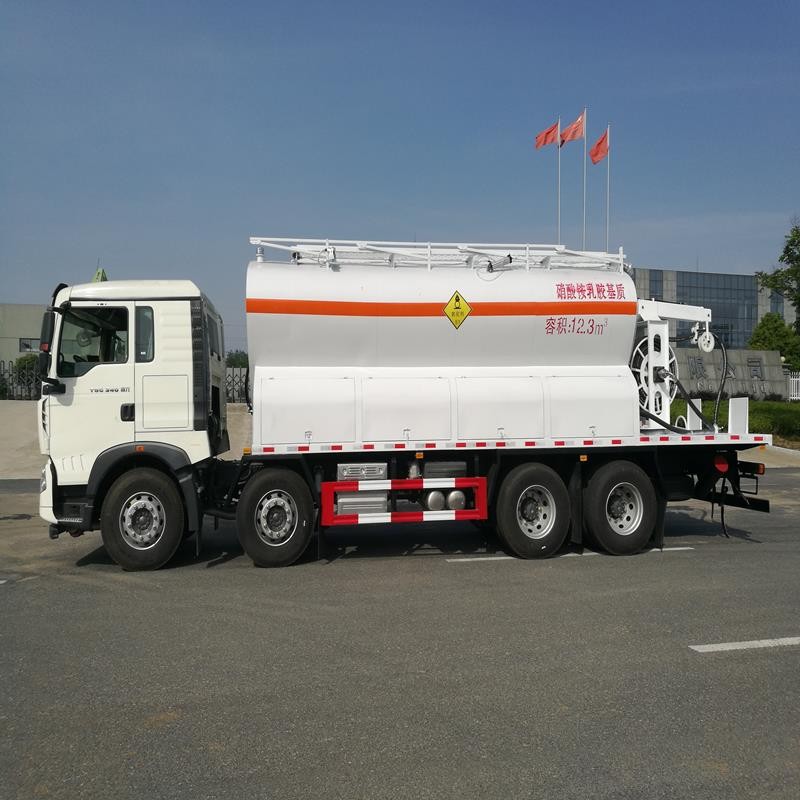

15T Emulsion Explosive Charging Truck

YQME-15 ntawm-site sib xyaw emulsion explosive truck yog ib qho kev sib koom ua ke mobile blasting unit. Nws khaws cov ntaub ntawv raw thiab sib xyaw cov khoom emulsion ncaj qha ntawm qhov chaw blasting es tsis txhob thauj cov khoom tawg tiav, txo qis kev nyab xeeb kev thauj mus los zoo heev. suited rau qhib-qhov mines, quarries thiab hydropower & infrastructure blasting tej yaam num, nws tag nrho cov kev ua tau zoo mus txog qib siab domestic.This explosive loading tsheb adopts on-site mixing ua hauj lwm hom, zoo txhim kho blasting siv efficiency.







High-precision adjustable them

Them nqi: 100-280 kg / min, ntsuas kam rau ua ± 1%. Tank: 1 m³ dej, 0.72 m³ sensitizer, 0.35 m³ accelerator. Qhov tsawg kawg nkaus borehole Φ70 mm. Txheem 40 m / 1.5-nti hose; 1-nti & 2-nti yeem.



Txhim khu kev xa khoom & dav - ntau yam boom

Dej-ntiv nplhaib tsim kom muaj kev pheej hmoo ntawm kev thaiv. Rotary boom viav vias 180℃(± 90 degree), ua kom tiav ntau- taw tes them nyiaj yam tsis muaj kev hloov tsheb ntau zaus.



Dual - tswj rau qhov chaw - kev ua haujlwm zoo

Lub vaj huam sib luag hauv zos thiab wireless chaw taws teeb tswj muaj. Tiag -lub sij hawm parameter zaub, kev co-cov khoom siv tiv taus haum rau hnyav kuv- qhov chaw.



Kev thov dav

Ua haujlwm qhib- qhov chaw thee & hlau mines, quarries, hydropower thiab infrastructure blasting txoj haujlwm.









Qauv	TSW-15
Zuag qhia tag nrho Dimension (mm)	10920×2500×3660
Max. Load Capacity	15 000 kg
Explosive Charging Capacity	15 000 kg
Tus nqi them	100-280kg / min
Kev ntsuas siab	±1%
Dej Tank Volume	1m³
Sensitizer Tank Volume	0.72m³
Accelerator Tank Volume	0.35​​​​​​​m³
Min. Txoj kab uas hla	Ntau dua lossis sib npaug φ70mm
Hose Specification	1.5 "(2" thiab 1" yeem)
Hose Length	40m
Max. Rotation Angle ntawm Rotary Boom	180℃(± 90 degree)







Q1: Puas yog nws thauj cov khoom tawg?

A: Tsis yog. Tsuas yog cov khoom siv raw yog thauj. Kev sib xyaw thiab kev them nyiaj tshwm sim ntawm qhov chaw blasting kom tsis txhob muaj kev phom sij.



Q2: Puas muaj qhov chaw me me?

A: Yam tsawg kawg nkaus borehole Φ70 mm. Tiv tauj peb rau kev ntsuam xyuas rau qhov me me.



Q3: Txog tej thaj chaw deb- tswj kev ua tau zoo?

A: Muaj chaw taws teeb ua haujlwm nyob rau hauv boom kev pab them nqi. Hloov mus rau lub vaj huam sib luag hauv zos hauv qab teeb meem hnyav.



Q4: Cov hose puas tuaj yeem txuas ntxiv?

A: 40 m txheem. Ntxiv - hose ntev ua rau lub siab poob thiab kev pheej hmoo ntawm kev thaiv, peb yuav ntsuas qhov ntev ua tau.



Q5: Tsim nyog rau qhov chaw txias lossis siab - qhov chaw siab?

A: Txheem version rau cov mines dav dav. Qhia rau peb yog tias koj xav tau txias -plateau adaptation.



Q6: Cov neeg ua haujlwm xav tau?

A: Cov neeg ua haujlwm yuav tsum ua kom tiav cov kev cob qhia cov cuab yeej thiab ua raws li pej xeem hauv zos - cov kev cai foob pob. Blasting cov neeg ua haujlwm xav tau daim ntawv pov thawj siv tau.
